R16

Ideaperfo

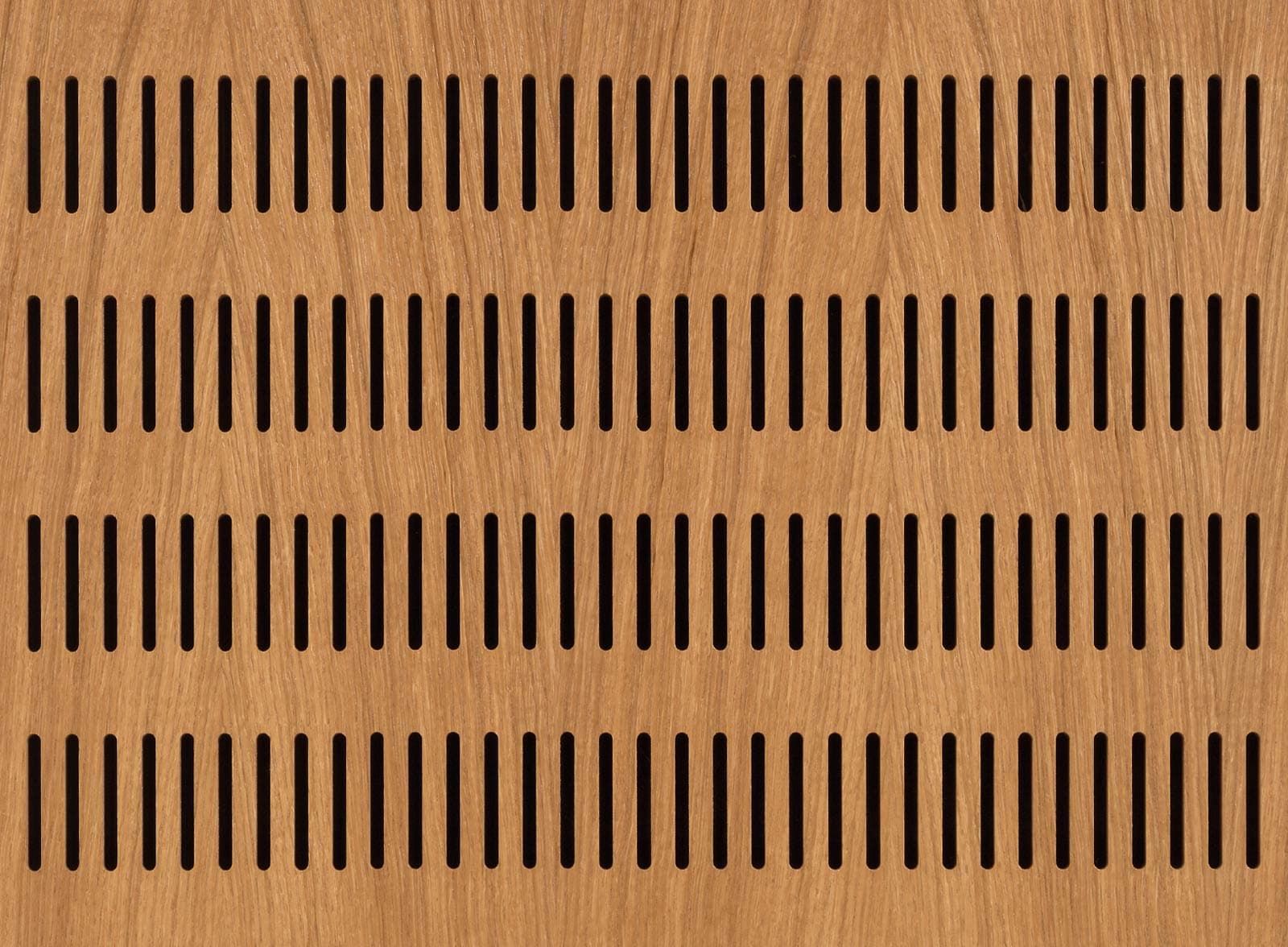

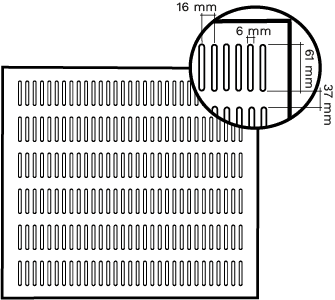

Slotted acoustic panels, a classic and timeless style proposal. The spacing between the slots is 16 mm horizontally and 37 mm vertically. With these panels, installations with a high degree of absorption and a high aesthetic finish can be achieved at a medium cost.

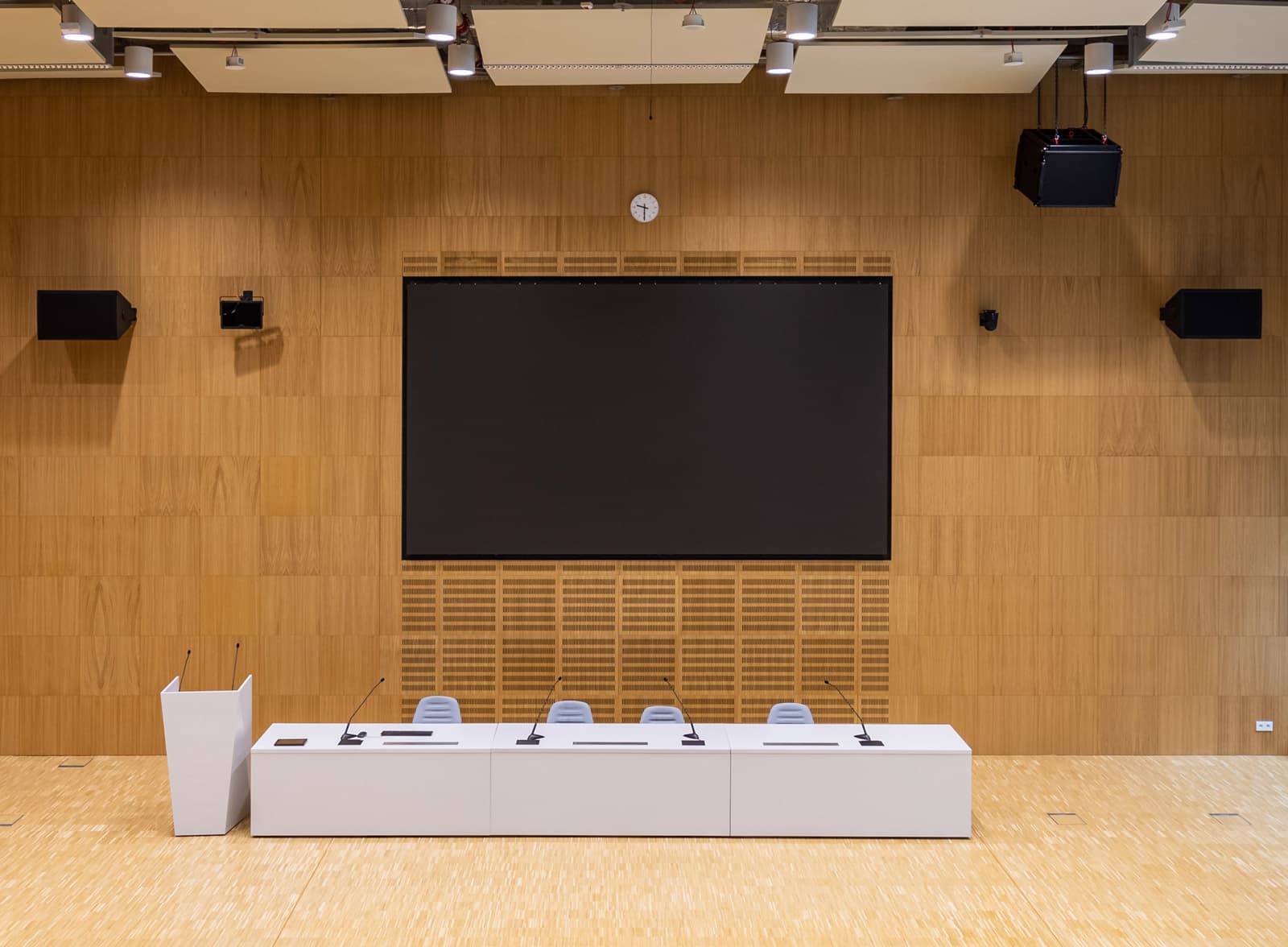

Application: walls y ceilings

Technical specifications

Format: panel

Measures: 600x600x12 mm

Composition: MDF medium-density fibre board

Weight: 7,92 kg/m2

Density: 750 kg/m3 pared

Acoustic tests: αm=0.65, αw=0.55, NRC=0.60

Application: Walls, Ceilings

– MDF Melamine 12 mm

– MDF veneered wood 13 mm

– HPL Compact 12 mm

Special support materials: Enquire for more details.

Acoustic absorbent layer: Black acoustic fleece adhered to the back.

Dimensions:

Ceiling: 1200/600x600x12 mm

Coating: 2430/1200/600x600x12 mm

Tolerance:

AWidth +- 1.5 mm / Length +- 1.5 mm. As per CE mark

We offer a wide range of finishes, including melamine in wooden finishes or solid colours, tints, lacquers and natural wooden veneers. When applied to the different MDF, plywood or phenolic compact base materials, they offer a high-quality end result. All of our profiles for walls and ceilings are quick to install. The properties of these products, along with our FIBERTEX diffusers and textile panels, enable us to offer high-performance acoustic and aesthetic solutions.
